Git reset

The first tree we will examine is "The Working Directory". This tree is in sync with the local filesystem and is representative of the immediate changes made to content in files and directories.

In our demo repository, we modify and add some content to the reset_lifecycle_file. Invoking git status shows that Git is aware of the changes to the file. These changes are currently a part of the first tree, "The Working Directory". Git status can be used to show changes to the Working Directory. They will be displayed in the red with a 'modified' prefix.

Next up is the 'Staging Index' tree. This tree is tracking Working Directory changes, that have been promoted with git add, to be stored in the next commit. This tree is a complex internal caching mechanism. Git generally tries to hide the implementation details of the Staging Index from the user.

To accurately view the state of the Staging Index we must utilize a lesser known Git command git ls-files. The git ls-files command is essentially a debug utility for inspecting the state of the Staging Index tree.

Here we have executed git ls-files with the -s or --stage option. Without the -s option the git ls-files output is simply a list of file names and paths that are currently part of the index. The -s option displays additional metadata for the files in the Staging Index. This metadata is the staged contents' mode bits, object name, and stage number. Here we are interested in the object name, the second value (d7d77c1b04b5edd5acfc85de0b592449e5303770). This is a standard Git object SHA-1 hash. It is a hash of the content of the files. The Commit History stores its own object SHA's for identifying pointers to commits and refs and the Staging Index has its own object SHA's for tracking versions of files in the index.

Next, we will promote the modified reset_lifecycle_file into the Staging Index.

Here we have invoked git add reset_lifecycle_file which adds the file to the Staging Index. Invoking git status now shows reset_lifecycle_file in green under "Changes to be committed". It is important to note that git status is not a true representation of the Staging Index. The git status command output displays changes between the Commit History and the Staging Index. Let us examine the Staging Index content at this point.

We can see that the object SHA for reset_lifecycle_file has been updated from e69de29bb2d1d6434b8b29ae775ad8c2e48c5391 to d7d77c1b04b5edd5acfc85de0b592449e5303770.

The final tree is the Commit History. The git commit command adds changes to a permanent snapshot that lives in the Commit History. This snapshot also includes the state of the Staging Index at the time of commit.

Here we have created a new commit with a message of "update content of resetlifecyclefile". The changeset has been added to the Commit History. Invoking git status at this point shows that there are no pending changes to any of the trees. Executing git log will display the Commit History. Now that we have followed this changeset through the three trees we can begin to utilize git reset.

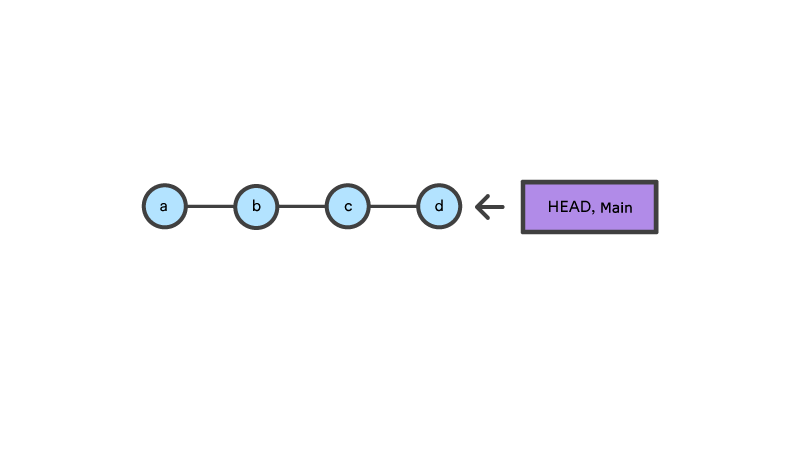

This example demonstrates a sequence of commits on the main branch. The HEAD ref and main branch ref currently point to commit d. Now let us execute and compare, both git checkout b and git reset b.

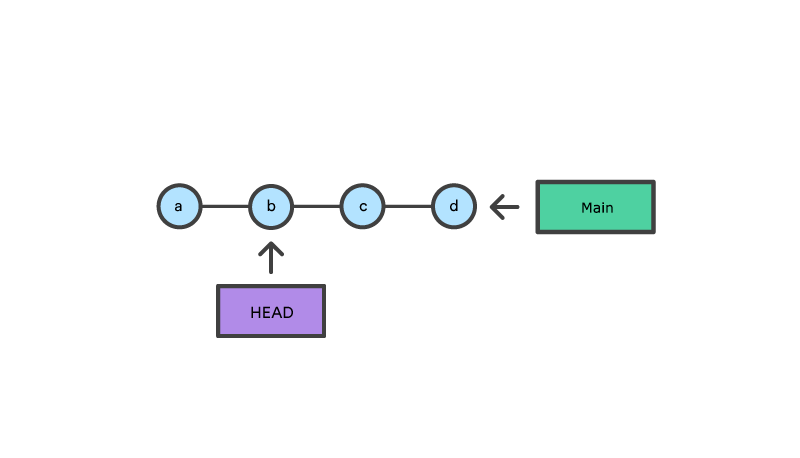

With git checkout, the main ref is still pointing to d. The HEAD ref has been moved, and now points at commit b. The repo is now in a 'detached HEAD' state.

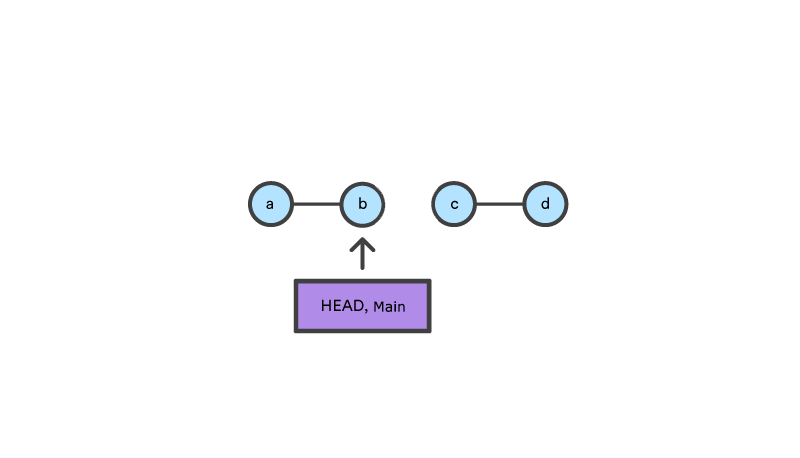

Comparatively, git reset, moves both the HEAD and branch refs to the specified commit.

In addition to updating the commit ref pointers, git reset will modify the state of the three trees. The ref pointer modification always happens and is an update to the third tree, the Commit tree. The command line arguments --soft, --mixed, and --hard direct how to modify the Staging Index, and Working Directory trees.

This is the most direct, DANGEROUS, and frequently used option. When passed --hard The Commit History ref pointers are updated to the specified commit. Then, the Staging Index and Working Directory are reset to match that of the specified commit. Any previously pending changes to the Staging Index and the Working Directory gets reset to match the state of the Commit Tree. This means any pending work that was hanging out in the Staging Index and Working Directory will be lost.

To demonstrate this, let's continue with the three tree example repo we established earlier. First let's make some modifications to the repo. Execute the following commands in the example repo:

These commands have created a new file named new_file and added it to the repo. Additionally, the content of reset_lifecycle_file will be modified. With these changes in place let us now examine the state of the repo using git status.

Here we have invoked git add reset_lifecycle_file which adds the file to the Staging Index. Invoking git status now shows reset_lifecycle_file in green under "Changes to be committed". It is important to note that git status is not a true representation of the Staging Index. The git status command output displays changes between the Commit History and the Staging Index. Let us examine the Staging Index content at this point.

We can see that new_file has been added to the index. We have made updates to reset_lifecycle_file but the Staging Index SHA (d7d77c1b04b5edd5acfc85de0b592449e5303770) remains the same. This is expected behavior because have not used git add to promote these changes to the Staging Index. These changes exist in the Working Directory.

Let us now execute a git reset --hard and examine the new state of the repository.

Here we have executed a "hard reset" using the --hard option. Git displays output indicating that HEAD is pointing to the latest commit dc67808. Next, we check the state of the repo with git status. Git indicates there are no pending changes. We also examine the state of the Staging Index and see that it has been reset to a point before new_file was added. Our modifications to reset_lifecycle_file and the addition of new_file have been destroyed. This data loss cannot be undone, this is critical to take note of.

This is the default operating mode. The ref pointers are updated. The Staging Index is reset to the state of the specified commit. Any changes that have been undone from the Staging Index are moved to the Working Directory. Let us continue.

In the example above we have made some modifications to the repository. Again, we have added a new_file and modified the contents of reset_lifecycle_file. These changes are then applied to the Staging Index with git add. With the repo in this state, we will now execute the reset.

Here we have executed a "mixed reset". To reiterate, --mixed is the default mode and the same effect as executing git reset. Examining the output from git status and git ls-files, shows that the Staging Index has been reset to a state where reset_lifecycle_file is the only file in the index. The object SHA for reset_lifecycle_file has been reset to the previous version.

The important things to take note of here is that git status shows us that there are modifications to reset_lifecycle_file and there is an untracked file: new_file. This is the explicit --mixed behavior. The Staging Index has been reset and the pending changes have been moved into the Working Directory. Compare this to the --hard reset case where the Staging Index was reset and the Working Directory was reset as well, losing these updates.

When the --soft argument is passed, the ref pointers are updated and the reset stops there. The Staging Index and the Working Directory are left untouched. This behavior can be hard to clearly demonstrate. Let's continue with our demo repo and prepare it for a soft reset.

Here we have again used git add to promote the modified reset_lifecycle_file into the Staging Index. We confirm that the index has been updated with the git ls-files output. The output from git status now displays the "Changes to be committed" in green. The new_file from our previous examples is floating around in the Working Directory as an untracked file. Lets quickly execute rm new_file to delete the file as we will not need it for the upcoming examples.

With the repository in this state we now execute a soft reset.

We have executed a 'soft reset'. Examining the repo state with git status and git ls-files shows that nothing has changed. This is expected behavior. A soft reset will only reset the Commit History. By default, git reset is invoked with HEAD as the target commit. Since our Commit History was already sitting on HEAD and we implicitly reset to HEAD nothing really happened.

To better understand and utilize --soft we need a target commit that is not HEAD. We have reset_lifecycle_file waiting in the Staging Index. Let's create a new commit.

At this point, our repo should have three commits. We will be going back in time to the first commit. To do this we will need the first commit's ID. This can be found by viewing output from git log.

Keep in mind that Commit History ID's will be unique to each system. This means the commit ID's in this example will be different from what you see on your personal machine. The commit ID we are interested in for this example is 780411da3b47117270c0e3a8d5dcfd11d28d04a4. This is the ID that corresponds to the "initial commit". Once we have located this ID we will use it as the target for our soft reset.

Before we travel back in time lets first check the current state of the repo.

Here we execute a combo command of git status and git ls-files -s this shows us there are pending changes to the repo and reset_lifecycle_file in the Staging Index is at a version of 67cc52710639e5da6b515416fd779d0741e3762e. With this in mind lets execute a soft reset back to our first commit.

The code above executes a "soft reset" and also invokes the git status and git ls-files combo command, which outputs the state of the repository. We can examine the repo state output and note some interesting observations. First, git status indicates there are modifications to reset_lifecycle_file and highlights them indicating they are changes staged for the next commit. Second, the git ls-files output indicates that the Staging Index has not changed and retains the SHA 67cc52710639e5da6b515416fd779d0741e3762e we had earlier.

To further clarify what has happened in this reset let us examine the git log:

The log output now shows that there is a single commit in the Commit History. This helps to clearly illustrate what --soft has done. As with all git reset invocations, the first action reset takes is to reset the commit tree. Our previous examples with --hard and --mixed have both been against the HEAD and have not moved the Commit Tree back in time. During a soft reset, this is all that happens.

This may then be confusing as to why git status indicates there are modified files. --soft does not touch the Staging Index, so the updates to our Staging Index followed us back in time through the commit history. This can be confirmed by the output of git ls-files -s showing that the SHA for reset_lifecycle_file is unchanged. As a reminder, git status does not show the state of 'the three trees', it essentially shows a diff between them. In this case, it is displaying that the Staging Index is ahead of the changes in the Commit History as if we have already staged them.

As soon as you add new commits after the reset, Git will think that your local history has diverged from origin/main, and the merge commit required to synchronize your repositories is likely to confuse and frustrate your team.

The point is, make sure that you’re using git reset ＜commit＞ on a local experiment that went wrong—not on published changes. If you need to fix a public commit, the git revert command was designed specifically for this purpose.

Remove the specified file from the staging area, but leave the working directory unchanged. This unstages a file without overwriting any changes.

Reset the staging area to match the most recent commit, but leave the working directory unchanged. This unstages all files without overwriting any changes, giving you the opportunity to re-build the staged snapshot from scratch.

Reset the staging area and the working directory to match the most recent commit. In addition to unstaging changes, the --hard flag tells Git to overwrite all changes in the working directory, too. Put another way: this obliterates all uncommitted changes, so make sure you really want to throw away your local developments before using it.

Move the current branch tip backward to commit, reset the staging area to match, but leave the working directory alone. All changes made since ＜commit＞ will reside in the working directory, which lets you re-commit the project history using cleaner, more atomic snapshots.

Move the current branch tip backward to ＜commit＞ and reset both the staging area and the working directory to match. This obliterates not only the uncommitted changes, but all commits after, as well.

The git reset command is frequently encountered while preparing the staged snapshot. The next example assumes you have two files called hello.py and main.py that you’ve already added to the repository.

As you can see, git reset helps you keep your commits highly-focused by letting you unstage changes that aren’t related to the next commit.

The next example shows a more advanced use case. It demonstrates what happens when you’ve been working on a new experiment for a while, but decide to completely throw it away after committing a few snapshots.

The git reset HEAD~2 command moves the current branch backward by two commits, effectively removing the two snapshots we just created from the project history. Remember that this kind of reset should only be used on unpublished commits. Never perform the above operation if you’ve already pushed your commits to a shared repository.

To review, git reset is a powerful command that is used to undo local changes to the state of a Git repo. Git reset operates on "The Three Trees of Git". These trees are the Commit History (HEAD), the Staging Index, and the Working Directory. There are three command line options that correspond to the three trees. The options --soft, --mixed, and --hard can be passed to git reset.\

In this article we leveraged several other Git commands to help demonstrate the reset processes. Learn more about those commands on their individual pages at: git status, git log, git add, git checkout, git reflog, and git revert.
